What Wire EDM Does
Wire EDM (electrical discharge machining) cuts conductive metal with a thin, electrically charged wire that never touches the part. A controlled series of electrical discharges erodes material along a programmed path, spark by spark, while deionized water flushes the cut. The wire is the tool, and the tool never dulls, deflects, or pushes on the workpiece.
That last part is the point. Because the process is electrical rather than mechanical, wire EDM cuts hardened and heat-treated metals with no cutting forces at all. Thin walls hold their shape. Fine details and small internal radii come out as programmed. Edges leave the machine essentially burr-free. For features that would distort, chatter, or need secondary deburring under conventional machining, wire EDM is the cleaner path.
Where Wire EDM Earns Its Place
Hardened and Heat-Treated Metals
Tool steels and heat-treated alloys are cut after hardening, in their final material condition. No post-machining heat treat distortion to chase, no re-cutting to recover a tolerance.
Thin Walls and Delicate Geometries
Features that cannot tolerate cutting forces hold their shape through an EDM cut. Thin walls, fine slots, and small internal radii come out as programmed.
Tight-Tolerance Secondary Features
Precision features added to parts already machined, turned, or fabricated elsewhere in the shop, with no cutting loads on the finished surfaces.
Burr-Free Production Edges
Edges leave the machine burr-free, which removes a deburring operation and the handling variation that comes with it.
Materials
Wire EDM works on conductive metals, which covers most of the materials already running through the shop: stainless and carbon steels, hardened tool steels, titanium, nickel-based and high-temperature alloys, aluminum, brass, and copper. Material selection and condition are reviewed during quoting, the same as every other process at JD Machine. Full material scope is on the Materials We Work With page.

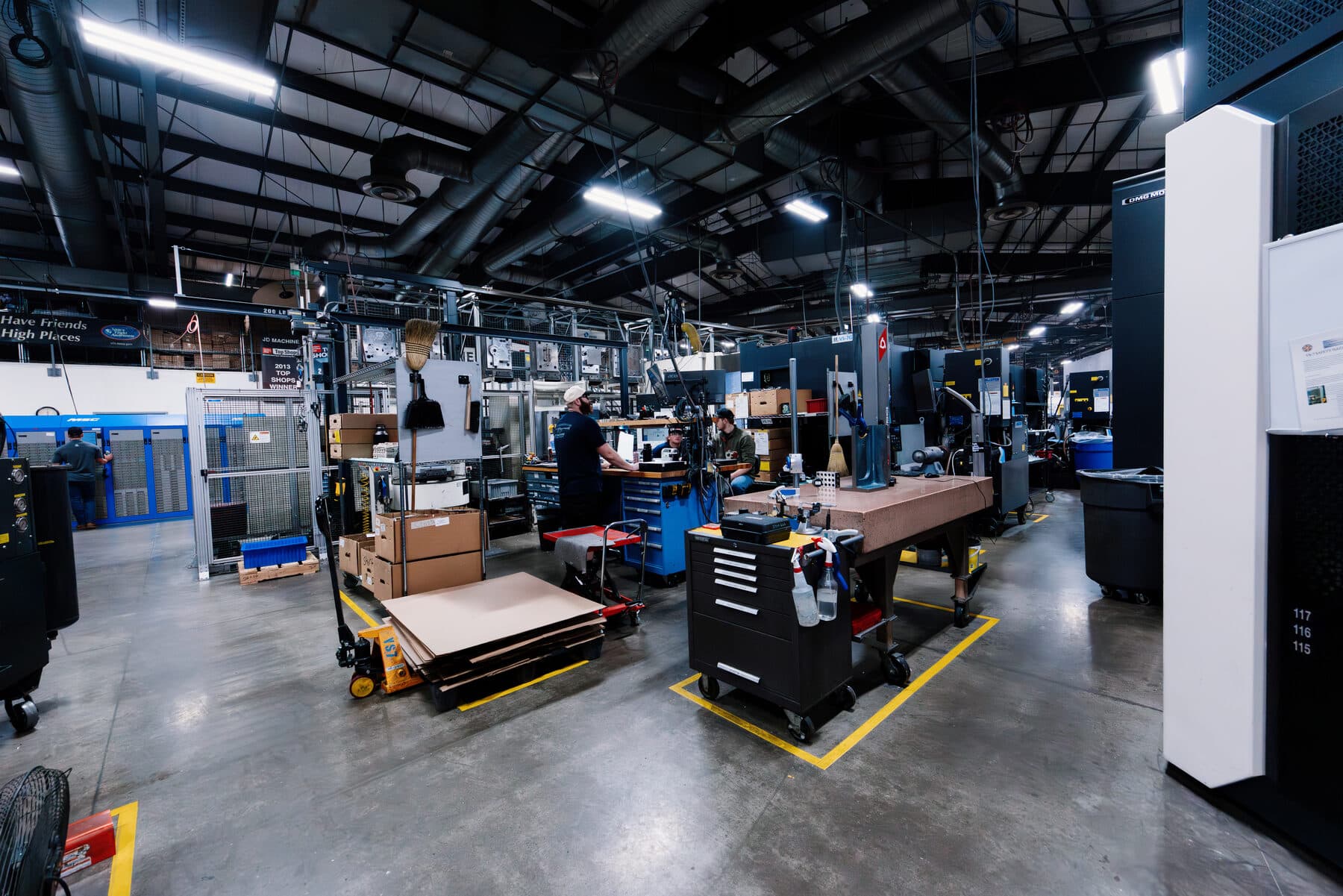

Integrated With the Rest of the Shop
Wire EDM rarely stands alone. Most EDM work at JD Machine is one operation in a longer traveler: parts move between precision CNC machining, sheet metal fabrication, wire EDM, and in-house assembly and testing without leaving the building. Processes are engineered offline using CAD/CAM and CNC program simulation software, with OEE and throughput tracking on every machine, so the EDM operation is planned, sequenced, and measured like everything else on the floor.
One facility, one quality system, one part record. The part that ships carries its full process history from the first cut to the final test.
The Quality System Behind the Cut
Wire EDM runs inside the same quality systems as the rest of the work: AS9100D and ISO 9001:2015 third-party registered, CMMC Level 2 (C3PAO certified, registered in SPRS), and ITAR registered for defense work. Dimensional verification happens in a temperature- and humidity-controlled quality area, and every job ships with full inspection records and certificates of conformance. The 99.5% customer quality rating sustained across 40+ years covers the EDM work the same as everything else. The full credential set is on the Certifications page.
Put Wire EDM on the Traveler
Send a print, an RFQ, or a feature question. Quote response in less than 1 business day.
